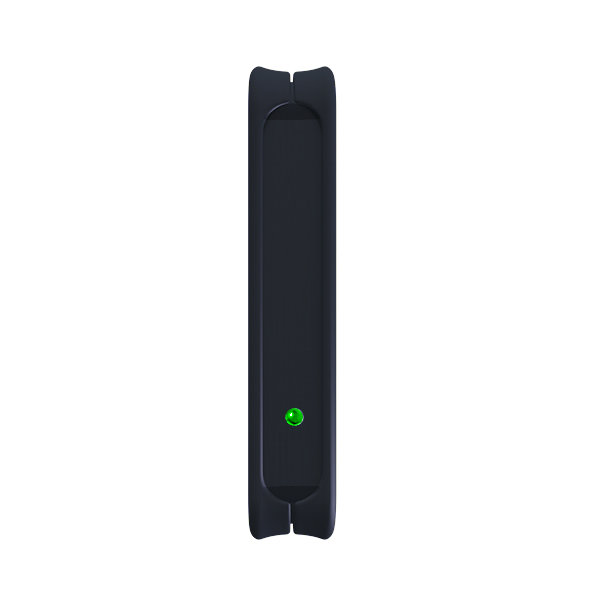

ALL-TAG – Micro People Counter
Product code: T-PC-SA1000 MICRO
ALL-TAG’s completely wireless People Counting System is a reliable, user-friendly, and affordable tool that will help almost any type of business operate more efficiently. The transmitter unit transmits two infrared beams to the receiver unit. When someone passes between the 2 units and breaks the infrared beam, the internal counter increases by one. The number includes people entering and exiting a space, so the separate in and out counts can be determined by dividing the number by 2. The Counter can be reset back to zero at any time with the use of a special tool we provide. This counter can be set up in minutes and requires virtually no maintenance.
The incredibly small size of the Micro Counter makes it simple to mount to virtually any wall or doorframe. The infrared beam is transmitted and received from the sides of the transmitter and receiver, which allows the units to be mounted flat against the walls surrounding a doorway or open space.
Specifications:
Product Code – T-PC-SA1000 MICRO
Dims. – 3.2 x 2 x 0.55” (83 x 51 x 14 mm)
Material – ABS Plastic – Black
Power supply – 3V CR2450 Battery
Battery life – 1 year
Maximum counting distance – 16.5 feet (5 m)
Maximum count value – 99999
Resetting Tool and Two 3V CR2450 batteries included
Need it sooner? Contact us directly to get a quote for faster shipping.
Email: msteg@all-tag.com
Phone: 561.998.9983 ext. 15
$220.00
